Flera nya Blisma 3" (dome) mids, specs och priser

[juanth]

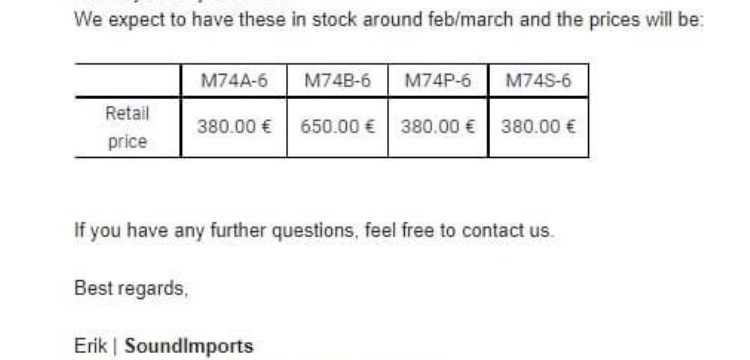

Hög känslighet och högt pris.



[JM]

Beryllium varianten är dyr men ser intressant ut. AlMg alloy domen duger sannolikt. Mätningar kommer snart - HiFiCompass.

https://www.diyaudio.com/forums/multi-w ... s-161.html

Features : • Textile surround covered by faceplate with moderate horn
low non linear distortion loading for flat frequency response and wide off-axis response
• Single-layer ribbon CCAW voice coil for lower inductance
response and higher efficiency • Underhung voice coil wound on titanium former
• Fully saturated neodymium motor with copper • Flexible and lightweight lead wires made in Denmark
sleeve for low non linear and modulation distortion • Thick aluminium powder coated flange
• 2.4 mm linear excursion and large vent channel for • Aluminium rear chamber with natural wool damping
undistorted low frequency operation • Gold plated wire terminals
• No ferrofluid for improved dynamics • Recommended frequency range Fs - 8 kHz
Specifications : Specifications are subject to change without prior notice
Nominal impedance 6 Ω
Rated power handling* N/A W
Sensitivity 2.83V/1m 97 dB
Net weight 0.68 kg
Effective piston area, Sd 50.25 cm²
Moving mass, Mms 1.8 g
Force factor, Bl 6.8 T*m
Resonance frequency, Fs 440 Hz
Mechanical Q factor, Qms 7.6
Electrical Q factor, Qes 0.94
Total Q factor, Qts 0.84
Magnetic flux density 1.35 T
Air gap height 4.2 mm
Linear excursion (p-p) 2.4 mm
Voice coil diameter 74 mm
Voice coil height 1.8 mm
Voice coil layers 1
Voice coil inductance, Le 0.036 mH
DC resistance, Re 5.6 Ω
Wire material CCAW

JM

[Kraniet]

Intressant.
Ska bli kul att se distmätningar och se om beryllium är värd den extra kostnaden.
Tygversionen och aluminium ser ju dock intressanta ut också.

Udda med en papperskon också i en dome
